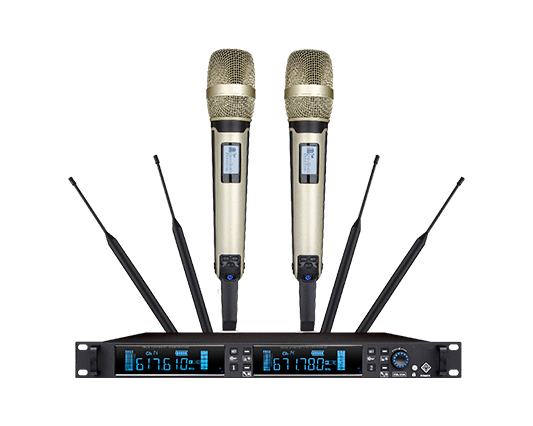

A-8100

Receiver specification

Frequency range: (641-690.8MHz);

Number of channels: 100+100 channels;

Oscillation method: Locking the loop (PLL) frequency synthesis;

Receiving method: one frequency frequency super internal difference, secondary frequency conversion super difference;

Receive sensitivity: -99 ~ -69dbm;

Audio frequent sound: 40 ~ 18000Hz;

Disctional degree: ≤0.5%;

Signal to noise ratio: ≥110db;

Audio output: (XLR) Kannon seat independent balanced output and φ6.35 socket mixed unbalanced output;

Power specifications: 100V ~ 240V/50 ~ 60Hz;

Consumption power: ≤8W;

Microphone specification

Frequency range: (641-690.8MHz);

Number of channels: 100+100 channels;

Method: FM FM; FM;

Frequency accuracy:+-10ppm;

Radiation power: ≤10dbm;

Audio frequent sound: 40 ~ 18000Hz;

Disctional degree: ≤0.5%;

Battery specification: 2 × 1.5V AA SIZE
