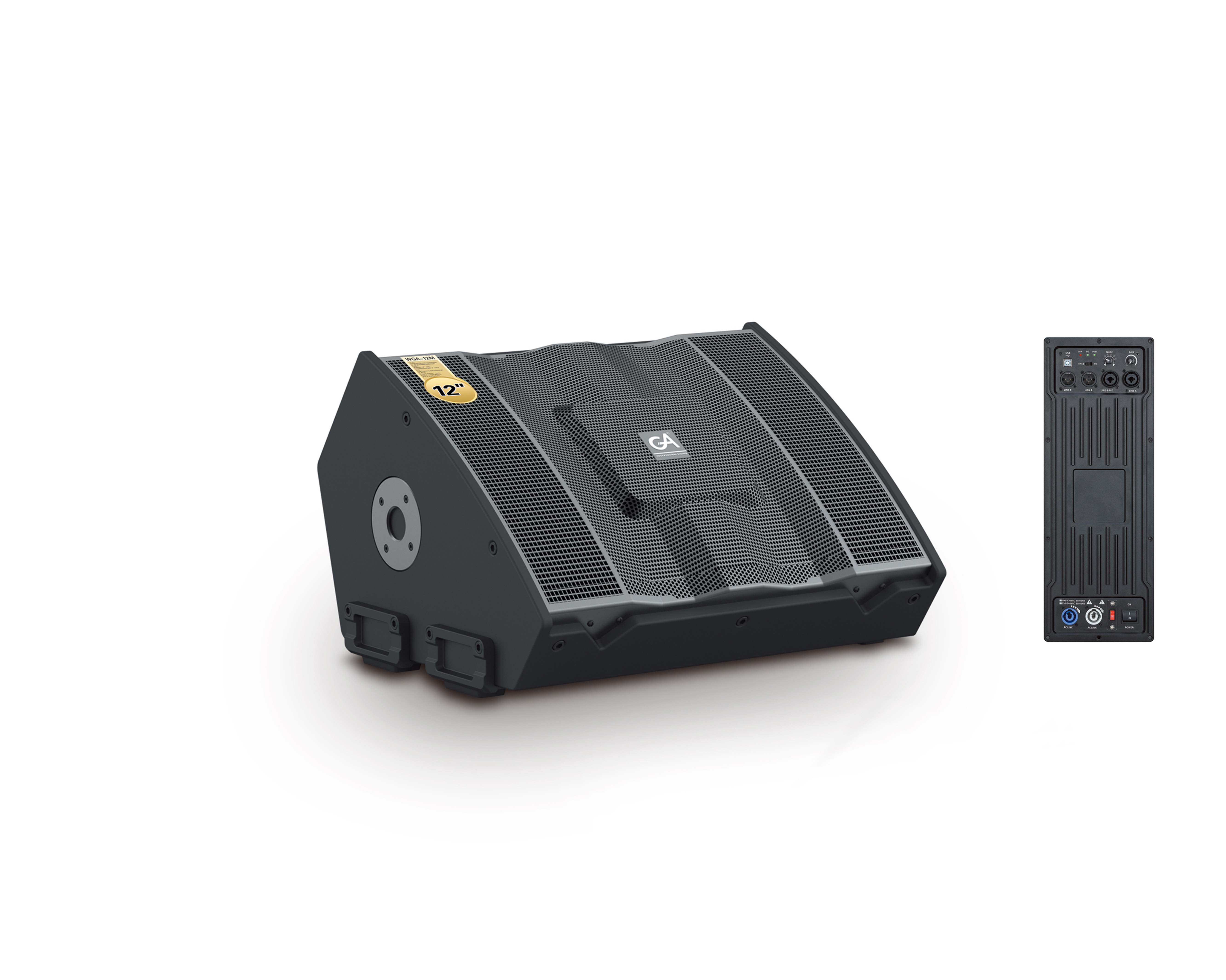

WGA-12MDP single 12-inch two-point frequency coaxial source return speaker

The WGA series has a shocking and touching temperament at the novel appearance design of the WGA series. Select advanced speakers to further strengthen the frequency division design, and the sound reduction is more accurate. This series of products are optimized by the unit's materials and computer -aided design, and strive to reflect high cost performance and good reliability. In terms of sound quality, this series of products combine many practical application experience, focusing on expressing the dynamics and goodness of music and goodness of the music. The transparency, the tone is plump and natural, the dynamic is large, and the low frequency elasticity is good.

This series can adapt to the use of various high -end and high requirements:
  1. Mobilization
  2. Stage monitoring
  3. Concert
Availability:
WGA-12MDP single 12-inch two-point frequency coaxial source return speaker
  • WGA-12MDP

System type:Single 12 -inch two -point frequency coaxial source return speaker
Module input sensitivity:0.775V
Module power interface:Power CON
Module input sensitivity:0.775V
Module output power:1000w/8Ω
Frequency range:55Hz-20KHz ± 3dB
Drive unit:

HF: 1*3 "(75mm) sound rings

LF: 1*12 "(75mm) sound rings 190 magnetic

Sensitivity:

97DB SPL 1W/1M

Extreme sound pressure level:122DB
The rated impedance:
Input power (continuous/music/peak):300W/600W/1200W
Enter the interface:2xneutrik® NL4MP
Size (HXWXD):

475*610*430mm

net weight:26 kg/only
