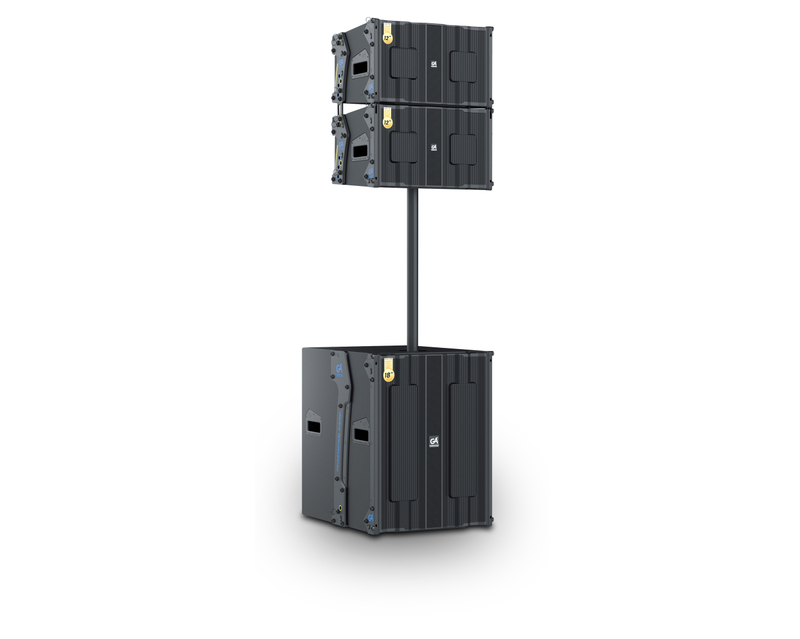

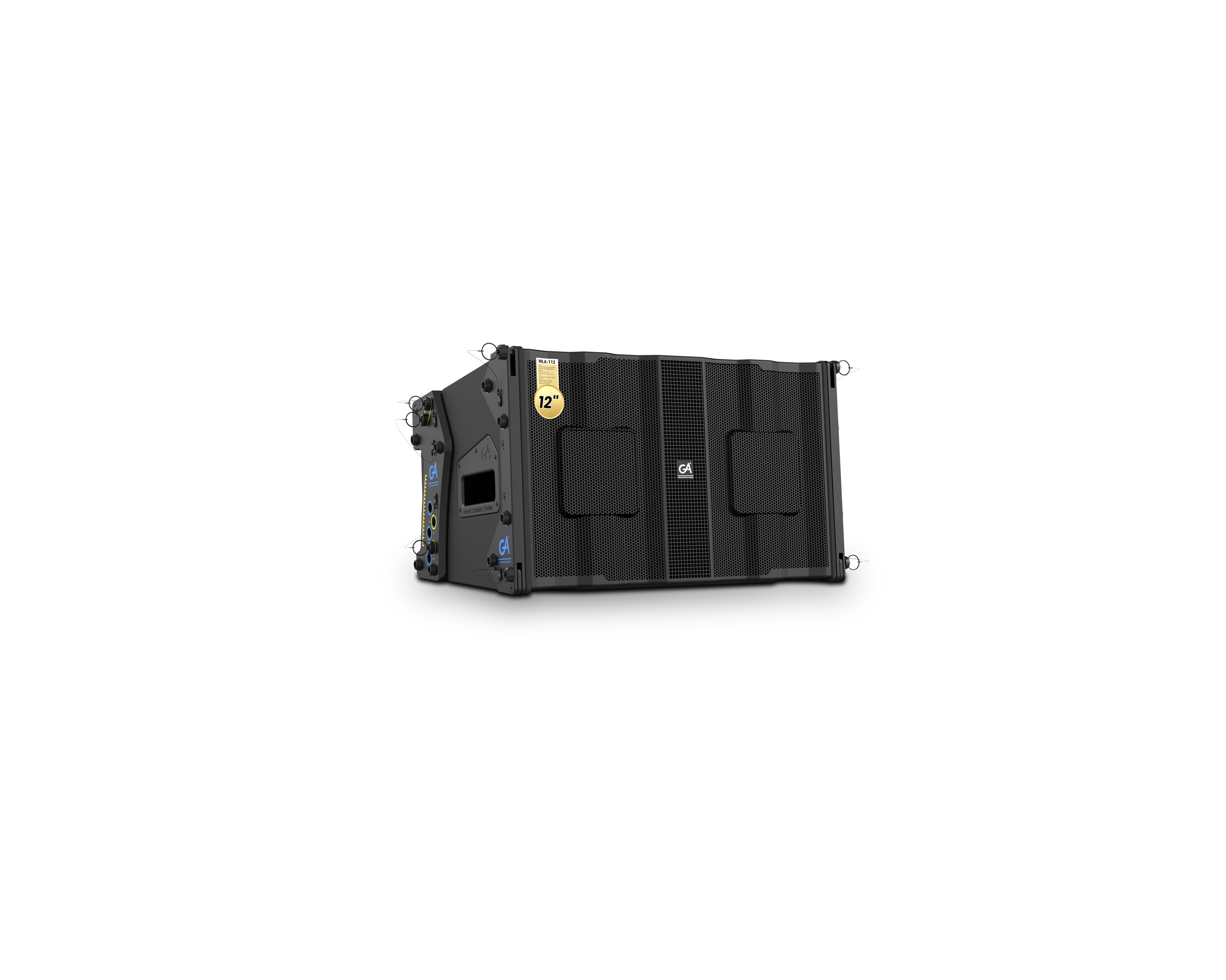

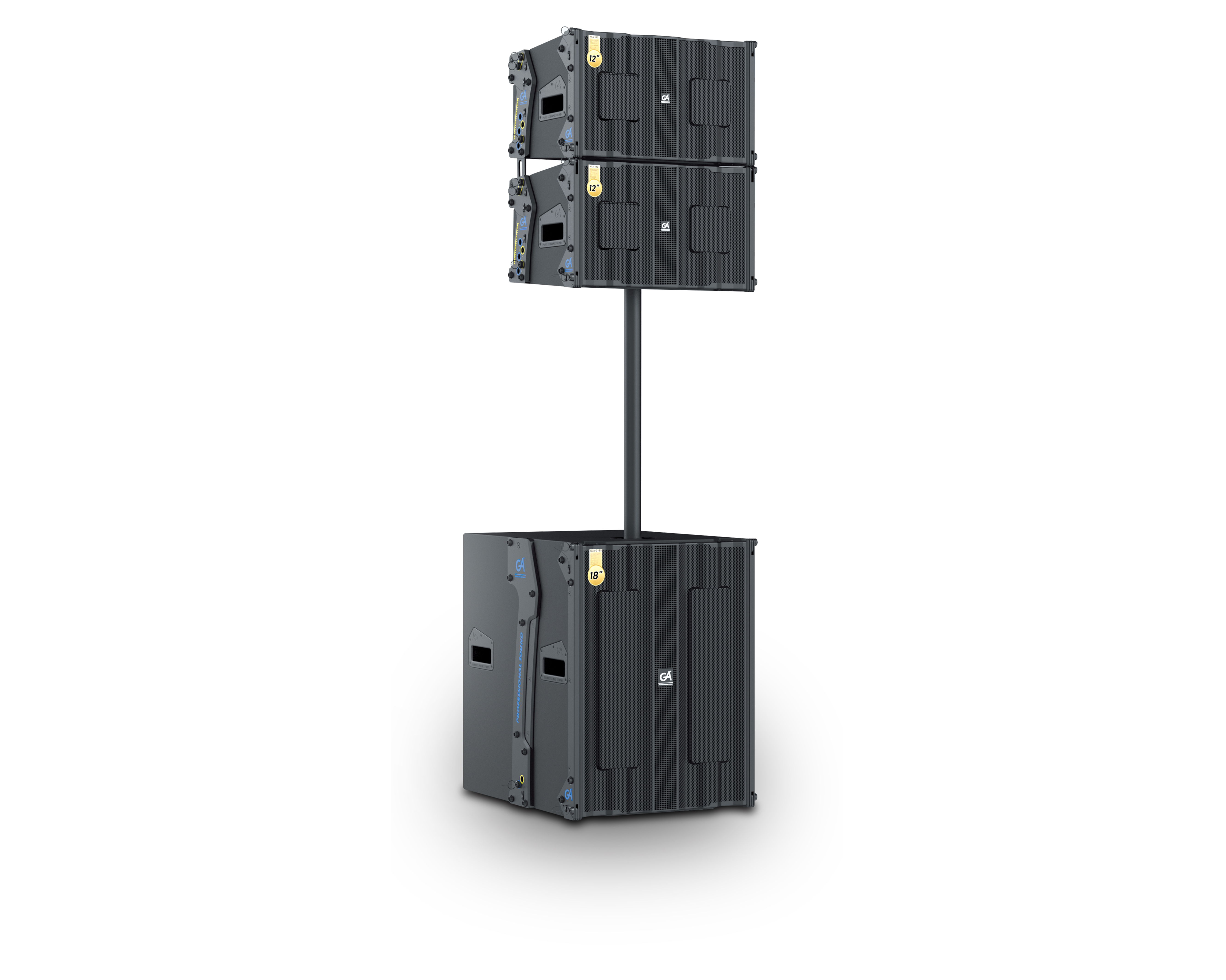

WLA-12 single 12-inch line array full-frequency speaker

The WLA series is a two -point frequency line. After long -term exploration and market demand, the GA R & D team has developed a high -end and high -end venue such as the banquet hall of the conference hall. The perfect combination of phase technology and waveguide technology ensures the uniformity and direction of sound field. The unique horn design enables the speakers to perfectly superimposed and combines to ensure the sound quality and extremely low distortion rate of the WLA series, and it is more convenient and flexible.
Application scenario:
  1. Mobilization
  2. bar
  3. stadium
  4. Concert
  5. hall

Availability:
WLA-12 single 12-inch line array full-frequency speaker
WLA-12 single 12-inch line array full-frequency speaker
WLA-12 single 12-inch line array full-frequency speaker
  • Wla-12

System type:Single 12 -inch line array full -frequency speaker
Frequency range:55Hz-20KHz ± 3dB
Drive unit:

Hf: 1*3 "(75mm) iron oxygen body

LF: 1*12 "(75mm) 190 magnet oxygen body

Sensitivity:

105DB SPL 1W/1M

Extreme sound pressure level:135DB SPL
The rated impedance:
Input power (continuous/music/peak):600W/1200W/2400W
size360*635*440mm
net weight:28kg/only
