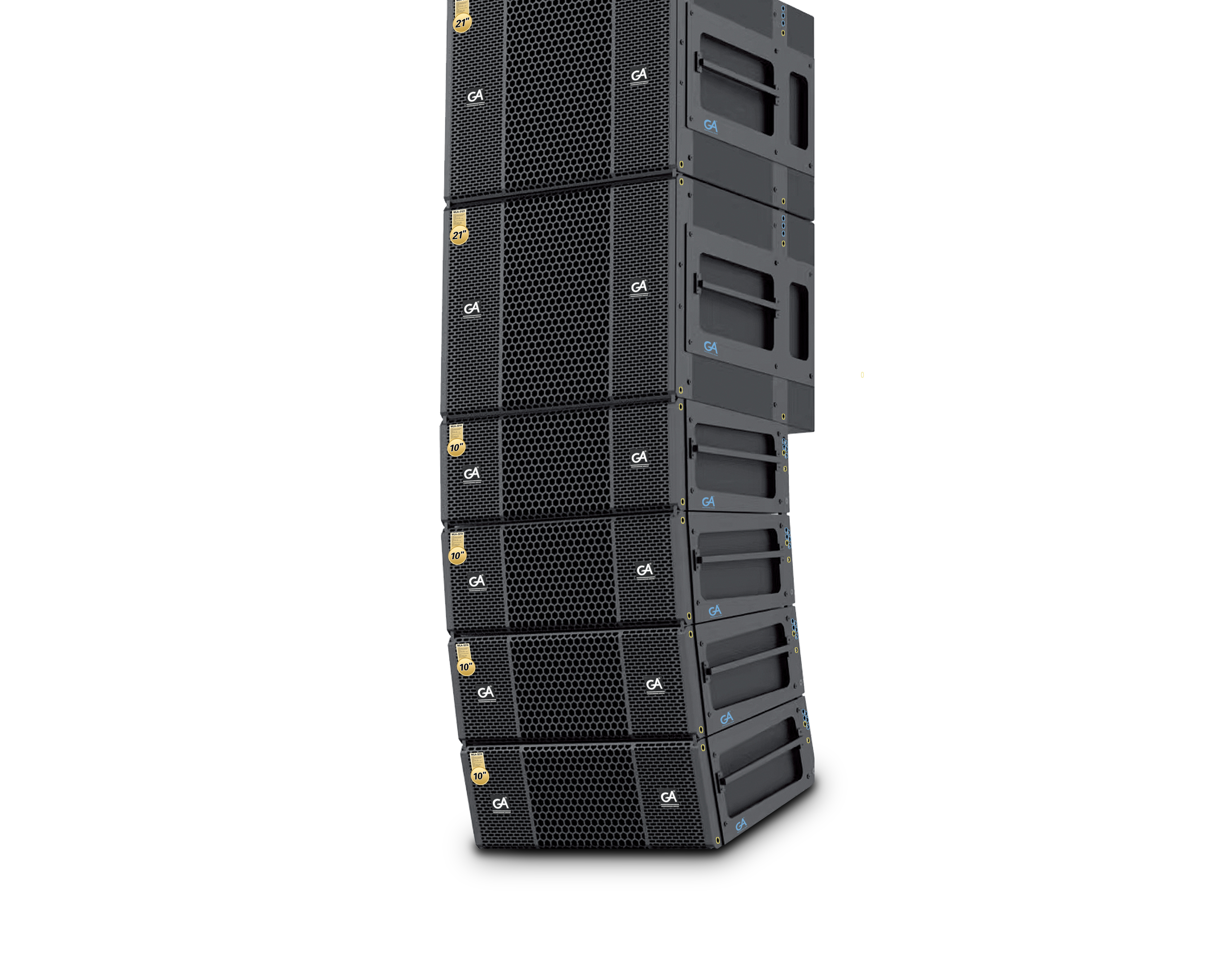

WLA-3212 Double 12-inch three-minute frequency line array

The WLA series is a three-quarter frequency line array speaker. After long-term exploration and combined with market demand, the GA R&D team has developed a line array product with high cost performance and unique technology, targeting high-end venues such as conference halls and banquet halls. The perfect combination of phase technology and waveguide technology ensures the uniformity and directionality of the sound field. The unique horn design allows speakers to be perfectly superimposed and combined to ensure the sound quality and extremely low distortion rate of the WLA series, making it more convenient and flexible to use.
Application scenarios:
  1. Mobile performance
  2. bar
  3. stadium
  4. Concert
  5. hall

Availability:
WLA-3212 Double 12-inch three-minute frequency line array
WLA-3212 Double 12-inch three-minute frequency line array
WLA-3212 Double 12-inch three-minute frequency line array
  • WLA-3212

System type:Double 12-inch three-point frequency line array/neodymium magnet
Frequency response range:62Hz-20KHz+3dB
Drive unit:

HF:2*3"(75mm) voice coil/neodymium magnet

MF: 4*6.5"(38mm) voice coil/neodymium magnet

LF:2*12"(75mm) voice coil/neodymium magnet

Sensitivity:

108dB SPL1w/1m

Extreme sound pressure level:142dB
Rated impedance:80
Input power (continuous/music/peak):700W/1400W/2800W
size:370*1099*648mm
net weight:72Kg/only
