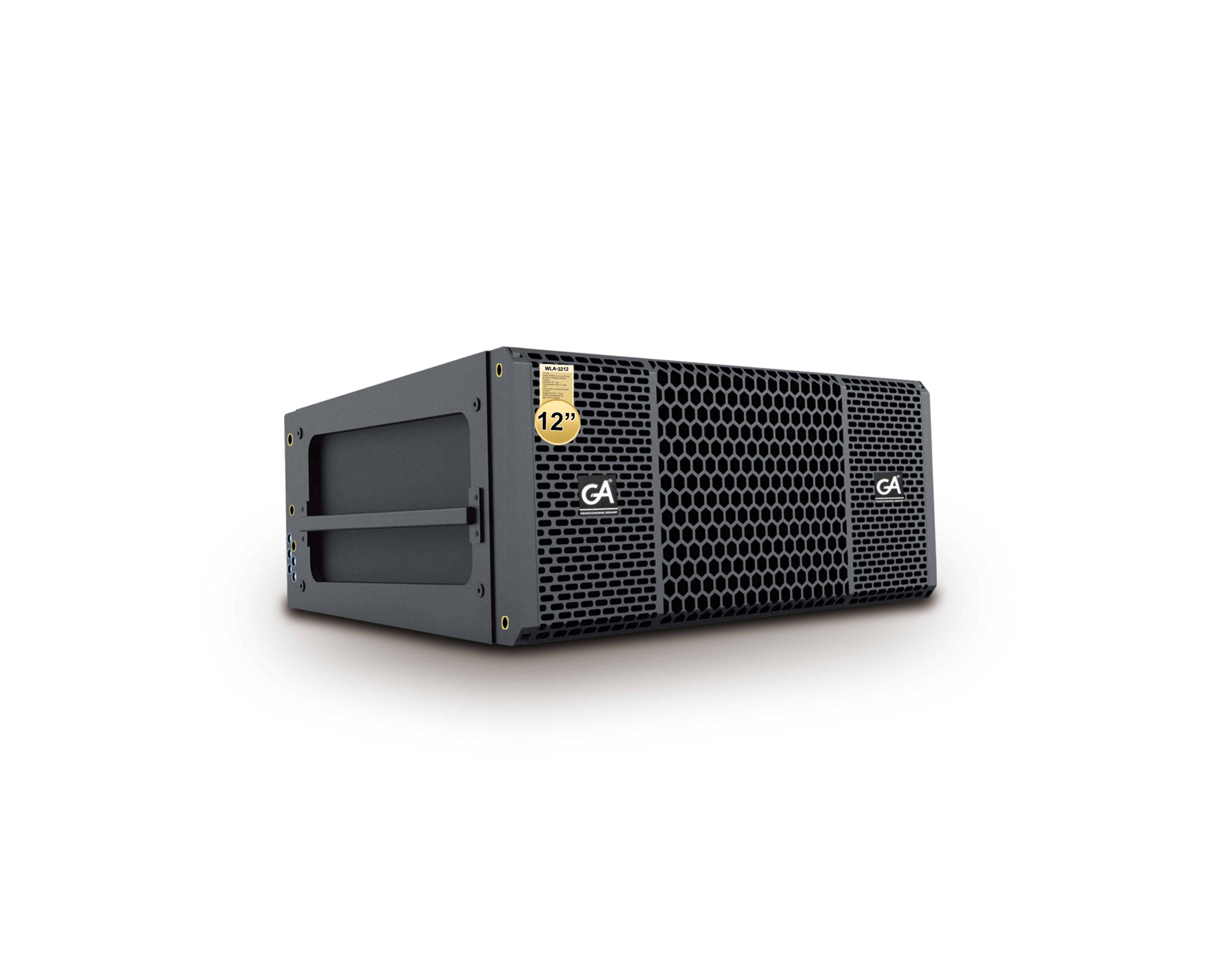

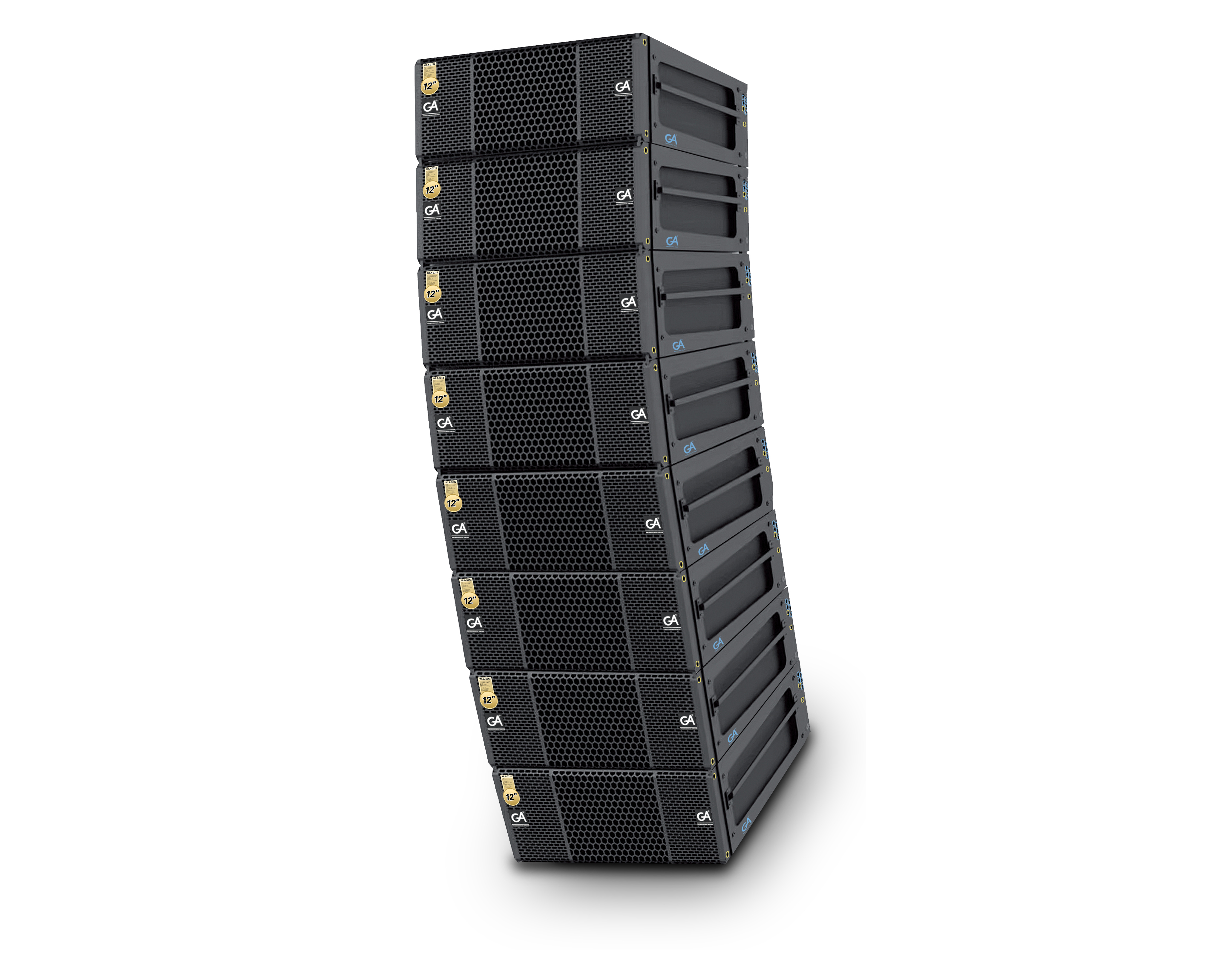

WLA-3212 dual 12-inch three-point frequency line

The WLA series is a three -pointer arrays. After long -term exploration and market demand, the GA R & D team has developed a high -end and unique line array products with high cost -effectiveness and unique technology. The perfect combination of phase technology and waveguide technology ensures the uniformity and direction of sound field. The unique horn design enables the speakers to perfectly superimposed and combines to ensure the sound quality and extremely low distortion rate of the WLA series, and it is more convenient and flexible.
Application scenario:
  1. Mobilization
  2. bar
  3. stadium
  4. Concert
  5. hall

Availability:
WLA-3212 dual 12-inch three-point frequency line
WLA-3212 dual 12-inch three-point frequency line
  • Wla-3212

System type:Double 12 -inch three -point frequency cable/钕 magnetic
Frequency range:62Hz-20kHz+3DB
Drive unit:

HF: 2*3 "(75mm) sound coil/钕 magnetic

MF: 4*6.5 "(38mm) sound coil/钕 magnetic

LF: 2*12 "(75mm) sound coil/钕 magnetic

Sensitivity:

108DB SPL1W/1M

Extreme sound pressure level:142DB
The rated impedance:80
Input power (continuous/music/peak):700W/1400W/2800W
size:370*1099*648mm
net weight:72kg/only
