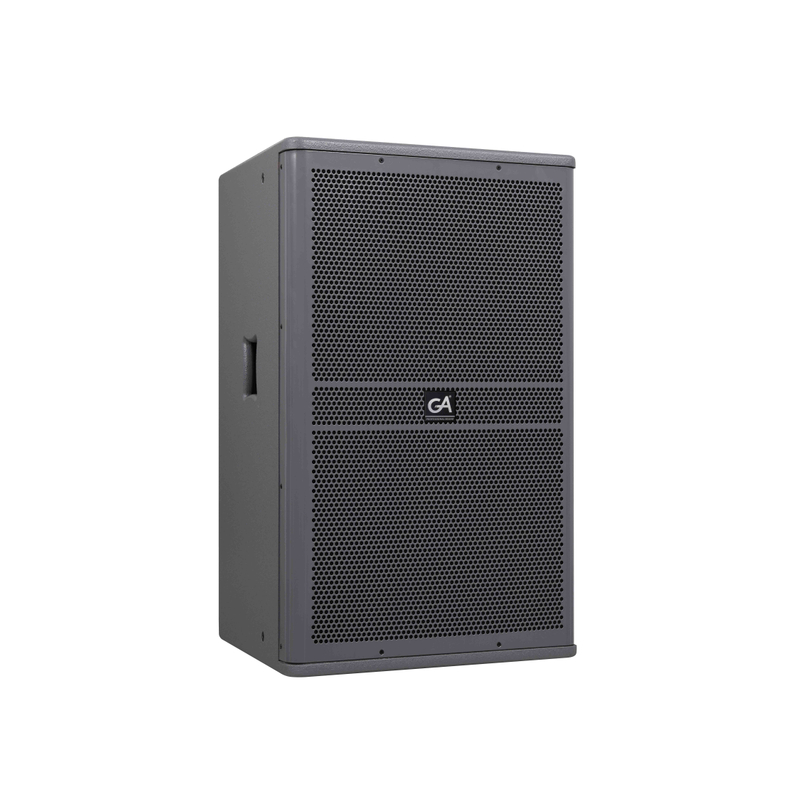

YM112

The YM series is a multipurpose professional audio system. This product uses advanced computer software technology (LEAP) to establish a simulation model based on the technical parameters of the loudspeaker unit and the detailed test and analysis design of the electro-acoustic audio testing software (DAAS). The low-distortion compression driver tweeter is customized for users in the cabinet of the series, which emits delicate treble and matches the power of bass with amazing clarity. It is suitable for main expansion and auxiliary in various types of occasions.

Application areas:

1. Conference Hall

2. Multifunctional hall, banquet hall

3. Multimedia Room

4. Theaters, auditoriums, etc.

5. Auxiliary speakers for various occasions
Availability:
YM112
  • YM112

System type:Single 12-inch two-degree full frequency speaker
Frequency Range:62HZ-20KHz ± 3dB
Sensitive:97DB SPL 1W / 1M
Maximum sound pressure level:123DB
Rated impedance:
Input power (continuous / music / peak):350W / 700W / 1400W
input interface:2XNEUTRIK® NL4MP
Size (HXWXD):600x380x430 mm
net weight:23kg / only
