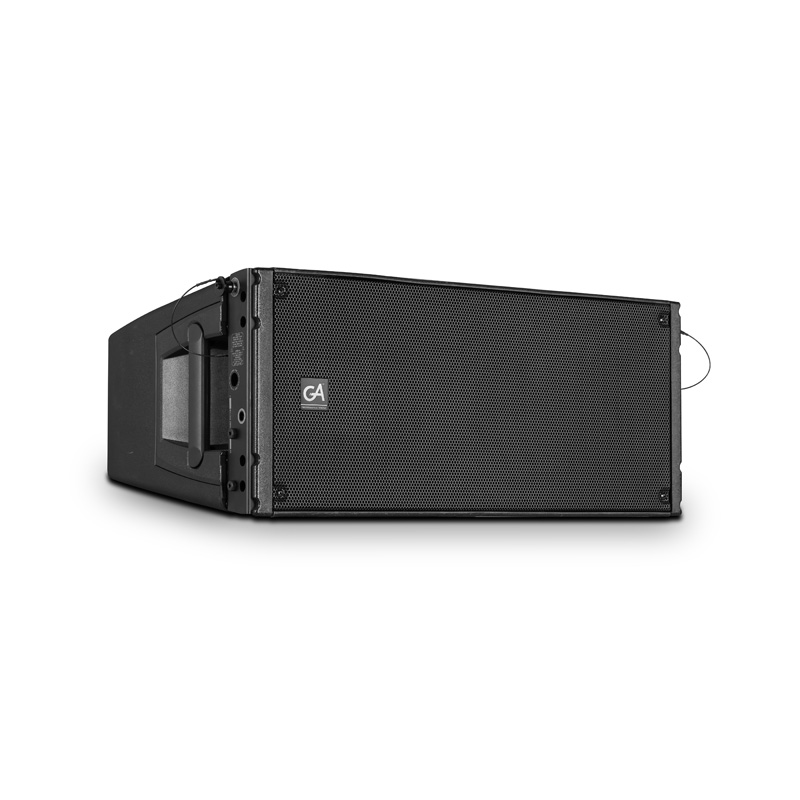

System type: HDL20-A dual 10-inch active plastic line array speakers
Active module: Class D Bi-amp with DSP/FIR
1400W PEAK
Frequency response range: 55Hz-20KHz±3dB
Driver unit: HF: 1*3" ferrite (VC/75mm voice coil)
LF:2*10" ferrite/(VC/65mm voice coil)
Sensitivity: 100dB SPL 1w/1m
Maximum sound pressure level: 135 dB
Rated impedance: 8Ω
Input power (continuous/peak): 700W/1400W
Dimensions (HXWXD):705*295*445 mm
Net weight: 30.5 Kg/piece
